My HVAC guy is telling me I need a 25 amp breaker and a 25 amp disconnect for my soon-to-be-installed central air compressor. I've asked him for more details but he's less than forthcoming. My assumption is that I will install: - a double pole 30 amp breaker on my breaker box (30 amp because they don't sell 25 amp breakers at my local big box store) - I'll run 10/2 NM from said breaker to a junction box on the interior of my house near the exit point. In that junction box, I'll splice to a weatherproof conduit and run out to the disconnect box. - The disconnect box will be a 60 amp disconnect (because, again, that's all they sell at the big box) but I'll get a fused version and put 25 amp fuses in there. Hopefully the HVAC guys will take it from there. Am I way off? Is a 30 amp breaker too much for the 25 amp requirement that my HVAC guy spec'd? In the US, it's required that manufacturers include the following items on condensing unit's nameplate (NEC 440.4(B)):

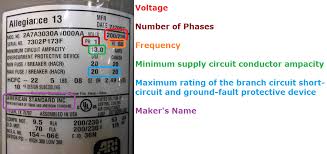

Minimum supply circuit conductor ampacity Maximum rating of the branch-circuit short-circuit and ground-fault protective device You'll simply use the minimum supply circuit conductor ampacity value from the name plate, and NEC 2011 Table 310.15(B)(16) through Table 310.15(B)(19) to determine the proper conductor size. As for the branch-circuit short-circuit ground-fault protection, you'll have to select one less than or equal to the maximum rating listed on the nameplate. However, you'll have to choose a device with a high enough rating to handle the inrush current, so you'll want to choose a device close to this value. To answer your questions directly... A 30 ampere breaker is the wrong one, if the nameplate lists 25 as the maximum rating of the branch-circuit short-circuit and ground-fault protective device. For 25 amperes, you're likely correct to use 10 AWG cable. Usually the disconnect is not fused, and simply functions as a safety disconnect.

You'll just have to make sure the disconnect is rated for greater than 25 amperes, and the appropriate voltage.Browse other questions tagged electrical air-conditioning or ask your own question.You can run your window air conditioner from an inverter. The most common way to use an inverter is when changing from alternating current, or AC, when going off the grid. By going off the grid, you will be using direct current, or DC electricity, from a sustainable energy source like solar, windmills or water. The inverter converts the DC current into AC current so that regular household appliances can be run from typical household sockets. The Electrical Basics An inverter is part of a 12-volt DC system. For practical purposes, it takes 11 amps of DC power to successfully run a 1-amp AC powered device. If you have a 5-amp window air conditioner, you will need 55 amps of DC power to run the unit continuously. However, all electrical appliances have a starting surge that gets the motor running.

This is generally five times the continuous electrical load, which means that, in this instance, you will need 275 amps of DC power to start the 5-amp air conditioning unit and then a continuous 55 amps to keep it running. 1 ton window ac best priceThe Air-Conditioning Unit The smallest window air conditioners that are designed for a single room, usually in the 5,000 BTU range, use about 4 to 5 amps of power when running. how much is a new 3 ton ac unitA larger whole house unit that puts out 12,000 BTU will use about 11 amps of power when running. choosing air conditioning unitThe surge on an 11-amp unit will be about 360 DC amps while the surge on a 4-amp unit will be about 130 amps. In this case, using the smallest air conditioning unit possible will enable you to use a smaller and less expensive inverter.

The Power Source In real terms, all the inverter does is to transfer a specified amount of power to operate any given AC electrical unit, including air conditioners. Although the inverter must be rated to accept the high amperage rating that an air conditioner will pull through it, all inverters get their power from a power source like storage batteries or direct hook-ups to solar panels, windmills or hydropower. These power sources must be capable of providing the needed surge power as well as the continuous energy needed to keep the air conditioner running. Charging In most cases, storage batteries will be used as the power source to run the air conditioner. These batteries will need to be charged on a regular basis. Alternate forms of sustainable power are almost always used to charge the batteries, including solar panels and windmills, among others. However, unless you are using hydropower, which guarantees a continuous source of sustainable power day or night, wind or no wind, a back-up AC grid hook-up can be used to charge the batteries on days when there is no sun or wind.
