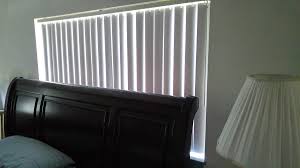

I need to install a window air conditioner in my master bedroom. However, the only suitable window there is a horizontal sliding window. To complicate things more, I need to place it on top, since my king size bed obstructs the lower part, as you can see here: This is how that window looks from the outside: I'm thinking in building a support structure like this one, using 2 by 4 planks: And after some thinking I think I can attach the transversal planks to the vertical ones, instead of attaching them to the outer wall, like this: And now, I'm thinking I can get rid of the exterior support structure altogether (in red in my last two pictures). The AC unit weights 48 lbs.Is there a simpler/better way to do it? Also, I'm renting, so I'd lean towards a solution that does the minimum damage to the window structure. hvac air-conditioning woodworking mounting I did this, almost exactly as you have drawn (in my mothers home when I was a teenager). You will need to support the back end if you cannot support the bottom "lip" of the AC from sliding forward.

In other words, the AC will have torquing-force. The reason I used a shelf for my AC was because I couldn't support the top. But since you are putting the AC at the top of the window, then you need to support the bottom from pushing both down and inward (or set it on a shelf). You will need to build/cut a groove (not just a front lip). A front lip is bad for two reasons: 1. A front-lip-only would mean that you would be able to lift the back of the AC up (when lift it, the bottom lip will slide out of the back of the window). ac unit fan motor2. If you plan to unscrew the lip to remove the AC, it may slip forward suddenly (when the last screw comes out).what ton is my ac unit You need to consider taking the AC out of the window (and putting it in). buy wall air conditioning unit

So leave a little slop/space/room in the groove to lean the AC forward and lift it out. Normally it's not a problem, because you can lift most windows... but you will be at the top of the window. If the bottom lip is 1 inch wide, you will probably need to cut the groove 1 1/4" wide. Also, I would add one or two more studs under the "ledge", so that it can't fall.Browse other questions tagged hvac air-conditioning woodworking mounting or ask your own question. Free Shipping on Most Items Over $50Authorized Online Retailer - Full Warranty5 Star Customer Service Team More about this item... Gifting note: This item ships in the manufacturer's original packaging. If intended as a gift, the packaging may reveal the contents. 10 000 BTU Slider Casement Electronic Controls Slider/Casement Air Conditioner with 3 Fan Speeds and 4 Way Air Direction Control Frigidaire's FRA103KT1 10,000 BTU Slider/Casement Room Air Conditioner is perfect for medium to large size rooms up to 500 square feet.
